描述:The TF series filters can be installed at the pump suction port ,on the top,at the side or in the bottom of the tank, filter bowl is immersed below the level of the tank, the filter head is outside the tank.
This filter has these features: novel design, convenient installation, high oil-passing capacity, and small resistance, filter element cleaning and replacement is convenient.

  • oil suction filter
  • pump suction filter
  • spin-on suction filter
  • suction filter cartridge
  • suction filter series
  • suction filter strainer
分享到:

  • 特点
  • 类型选择
  • 技术数据
  • 安装尺寸

产品特点:

Filter basic construction
 The cover and the lower housing of the TF series filters adopt threaded connection; filter bowl is spun on the lower housing. This filter is with check valve, by-pass valve and clogging indicator,when filter element is withdrawn for washing or replaced; the check valve will close automatically to stop oil flowing out from the tank.
 2.1 Housing material
 Filter cover material: High strength  plastic end cap
 Filter bowl material: High strength composite membrane aluminum tube
 2.2 Seals
 Perbunan (= NBR);   Viton (= FPM)(Customizable)
 2.3 Filter element
Filter medium material
 High strength carbon steel skeleton
 2.4 Optional accessories
 ZKF-II Clogging indicator
ZS-V Clogging indicator
2.5  Type of connection (choose according to filter type)
 Metric thread connection  (if inch threaded connection is needed, please contact us)
Flanged connection

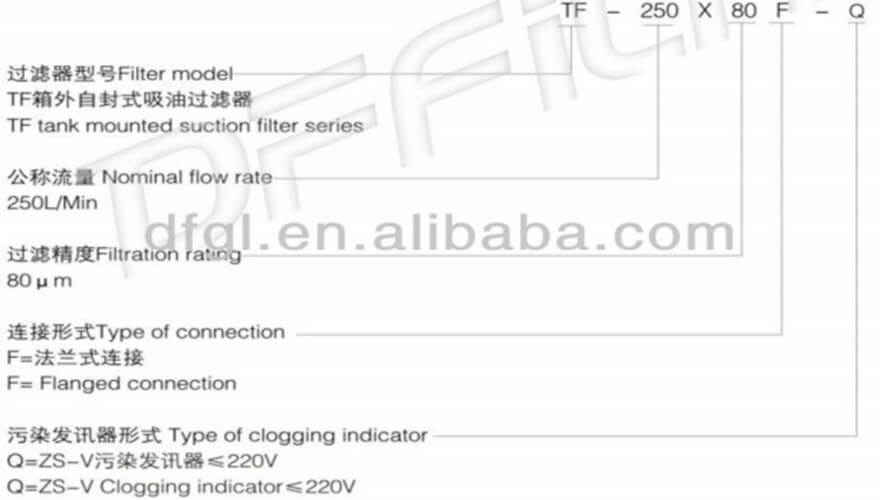

产品类型选择:

产品技术参数:

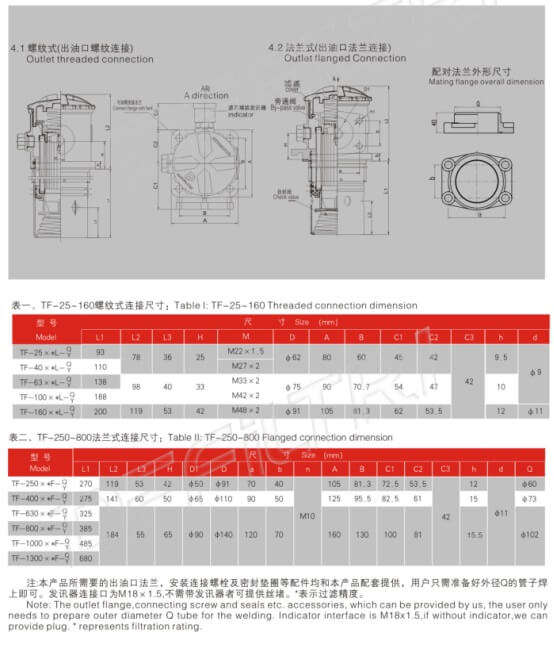

产品安装尺寸:
